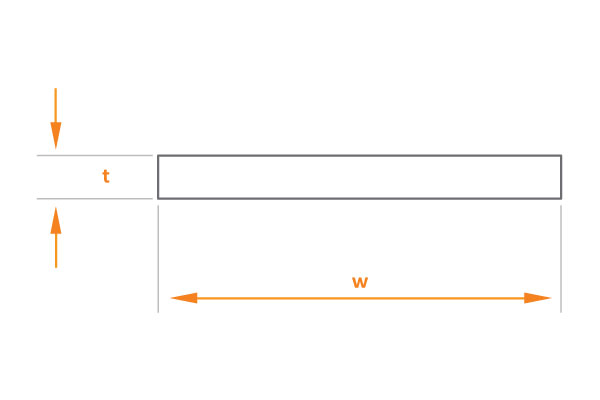

Lama
Boyutlar: EN 10058
Toleranslar: EN 10058
| GENİŞLİK (mm) |
KALINLIK (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 6 | 7 | 10 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 80 | |
| 40 | – | – | – | 3.14 | 3.77 | 4.71 | 6.28 | 7.85 | 9.42 | – | – | – | – | – |
| 45 | – | – | 2.51 | 3.53 | 4.24 | 5.30 | 7.07 | 8.83 | 10.6 | – | – | – | – | – |
| 50 | 1.77 | 2.12 | 2.83 | 3.93 | 4.71 | 5.89 | 7.85 | 9.81 | 11.8 | – | – | – | – | – |
| 60 | 1.96 | 2.36 | 3.14 | 4.71 | 5.65 | 7.07 | 9.42 | 11.8 | 14.1 | 16.5 | 18.8 | – | – | – |
| 70 | – | – | 3.77 | 5.50 | 6.59 | 8.24 | 11.0 | 13.7 | 16.5 | 19.2 | 22.0 | – | – | – |
| 80 | – | – | 4.40 | 6.28 | 7.54 | 9.42 | 12.6 | 15.7 | 18.8 | 22.0 | 25.1 | 31.4 | 37.7 | – |
| 90 | – | – | 5.02 | 7.07 | 8.48 | 10.6 | 14.1 | 17.7 | 21.2 | 24.7 | 28.3 | 35.3 | 42.4 | – |
| 100 | – | – | 5.65 | 7.85 | 9.42 | 11.8 | 15.7 | 19.6 | 23.6 | 27.5 | 31.4 | 39.3 | 47.1 | – |
| 120 | – | – | 6.28 | 9.42 | 11.3 | 14.1 | 18.8 | 23.6 | 28.3 | 33.0 | 37.7 | 47.1 | 56.5 | – |
| 150 | – | – | – | 11.8 | 14.1 | 17.7 | 23.6 | 29.4 | 35.3 | 41.2 | 47.1 | 58.9 | 70.7 | 94.2 |
